Welcome to sequencelogo.js

sequencelogo.js is a small and simple Javascript library for visualizing sequence logos within a web page. The user provides a PSSM of a biological sequence (either nucleic acid or peptide) and the library will automatically render the motif logo in an HTML5 canvas element using the provided rendering options.

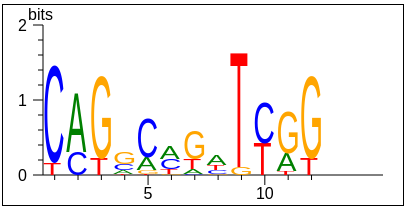

The example below was used to generate the project’s logo image:

  <div id="motif1"></div>
  <script src="seqlogo.js"></script>
  <script>
    function initCanvas() {
      var pssm = {
        alphabet: ['A', 'G', 'C', 'T'],
        values: [
            [ 0, 0, 0.888889, 0.111111 ],
            [ 0.722222, 0, 0.277778, 0 ],
            [ 0, 0.833333, 0, 0.166667 ],
            [ 0.166667, 0.5, 0.277778, 0.055556 ],
            [ 0.232532, 0.073023, 0.684134, 0.01031 ],
            [ 0.454755, 0.017468, 0.350801, 0.176977 ],
            [ 0.121421, 0.628579, 0.017468, 0.232532 ],
            [ 0.51031, 0.073023, 0.184134, 0.232532 ],
            [ 0, 0.055556, 0, 0.944444 ],
            [ 0, 0, 0.555556, 0.444444 ],
            [ 0.277778, 0.666667, 0, 0.055556 ],
            [ 0, 0.833333, 0, 0.166667 ]
        ]
    };
    var options = {
      width: 400,
      height: 200,
      style: {
         width: 400, height: 200,
         font: '20pt Helvetica'
      }
    };
    seqlogo.makeLogo('motif1', pssm, options);
  }
</script>

Contents:

• How to use sequencelogo.js
